GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install

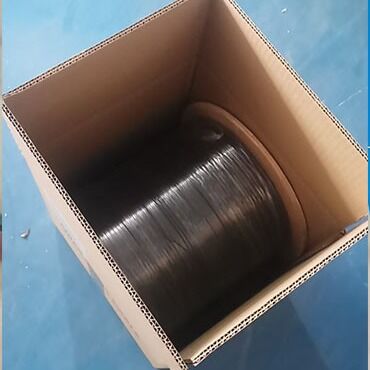

Количество мин заказа :	1000м	Упаковывая детали :	Деревянный барабан
Время доставки :	2-4 дня	Условия оплаты :	Western Union, Moneygram, T/T, L/C
Поставка способности :	100 км за 2 дня

Место происхождения:	Гуанчжоу, Китай	Фирменное наименование:	Jiqian/Customize/ OEM
Сертификация:	ISO9001 ROHS CE-EMC FCC SDOC	Номер модели:	GJXH GJXCH GJXFXCH

Подробная информация
Материал:	LSZH /PVS	Тип волокна:	G657A1/A2/G652D/G657A1/G657A2
Цвет:	Белый /черный	Центральный член силы:	Прочность FRP-части/стальная проволока
OEM:	Доступный	Установка:	FTTH-волокно для дома и улицы
Оптоволоконная марка:	Yofc/fiberhome/fujikura/corning	Количество волокон:	2-48 Ядра
Выделить:	steel wire FTTH drop cable , G657A fiber outdoor cable , LSZH flame-retardant fiber optic cable

Характер продукции

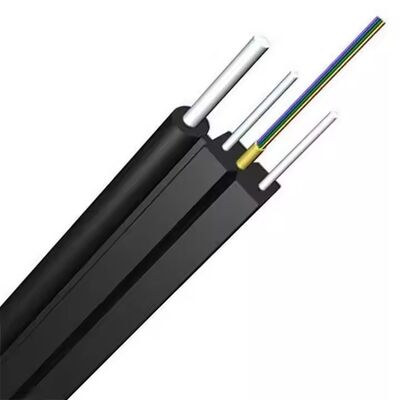

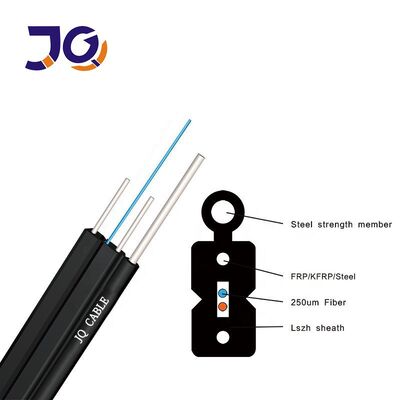

FTTH Drop Cable GJYXCH / GJYXFCH

Models:

2 Core Self-Support GJYXCH G.657A2
6 Core FTTH Outdoor Drop Cable
1/2/4 Core Steel Wire FTTH Drop Cable GJYXFCH G.657A Fiber

Features:

Soft, bendable, and easy to deploy and maintain
Small diameter, lightweight, and practical
FRP (Fiber Reinforced Plastic) or steel wire strength member for excellent anti-electromagnetic performance
Environmentally friendly LSZH/Flame-retardant sheath, low smoke, zero halogen

Applications:

Access network cable from outdoor to indoor in customer premises
Indoor/outdoor building cable in premises distribution systems
Suitable for FTTH deployments and terminal systems

Optical Characteristics

Item	Technology parameter
Cable type	GJYXCH-1B6	GJYXCH-2B6	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N	600
Long term tensile N	300
Short term crush N/100mm	2200
Long term crush N/100mm	1100
Operation temperature ℃	-20~+60

GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 0

GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 1

Factory:

GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 3

company profile:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.COMPANY PROFILE
