12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH

Количество мин заказа :	1 км	Упаковывая детали :	Деревянный барабан
Время доставки :	5-8 рабочих дней	Условия оплаты :	Л/К, Т/Т, Вестерн Юнион
Поставка способности :	30km в день

Место происхождения:	Гуанчжоу, Китай	Фирменное наименование:	JQ/OEM/Customize
Сертификация:	ISO9001 ROHS CE-EMC FCC SDOC	Номер модели:	ГИФТИ-48Б1.3

Подробная информация
Количество волокон:	4-144 ядра	Тип волокна:	Одно режим G652D/G657A1
Куртка:	PE, MDPE, LSZH, PVC, HDPE	Цвет:	Черный или оранжевый или подгонянный
Название продукта:	Небронированные кабели из оптических волокон	Структура:	Стройная трубка SZ
Установка:	Антенна и воздуховод	Упорный член:	Фрп
Выделить:	GYFTY duct fiber optic cable , outdoor FTTH fiber optic cable , 12 core non-armored fiber cable

Характер продукции

2-144 Cores GYFTY Non-armored Duct Fiber Optic Cable With Factory Price, Support OEM.

Key Features

Small diameter lightweight and soft for easy installation
Optimized structure with strong water blocking performance
FRP non metallic central strength member for high tensile strength
Excellent resistance to electromagnetic interference
Jelly filled loose tube design with PP filler for fiber protection
Water blocking tape and PE outer sheath for outdoor durability

Application

Aerial installation
Duct installation

Product Characteristics

Excellent mechanical strength and temperature stability
Reliable fiber protection for long term outdoor deployment
PE sheath provides strong UV resistance crush resistance and flexibility

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

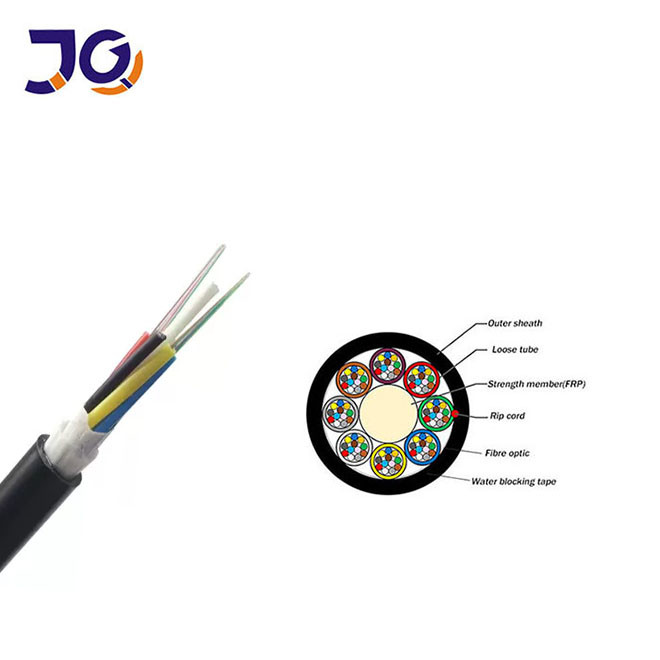

Cable Parameters

Items		Specifications
Fiber Count		48fibers
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	2.0mm±0.2mm
Strength Member	Material	FRP or steel wire
Outer Jacket	Dimension	12.0mm±0.2mm
	Material	PE
	Color	Black
