Optical Fiber Cutter Handheld Optical Fiber Cleaver

Количество мин заказа :	1 кусок	Упаковывая детали :	Внутри пластиковый чехол, снаружи с картинкой
Время доставки :	3-5 дней, это зависит от количества заказов.	Условия оплаты :	L/C, T/T, Western Union, Alipay
Поставка способности :	2000 штук в месяц

Место происхождения:	КИТАЙ	Фирменное наименование:	JQ/OEM
Сертификация:	ISO 9001	Номер модели:	FC-20

Подробная информация
Приложение:	инструмент сети	Название продукта:	Оптический резчик волокон
Могил:	1 шт	Гарантийное время:	1 год
Колоть длина:	Одиночное волокно: 8 ~ 20 мм	Применимый волоконно -кабель:	Одиночное волокно: 0,25 ~ 3,0 мм
Типичный расщепленный угол:	менее 0,5 градуса
Выделить:	handheld optical fiber cleaver , optical fiber cutter tool , fiber optic cleaver with warranty

Характер продукции

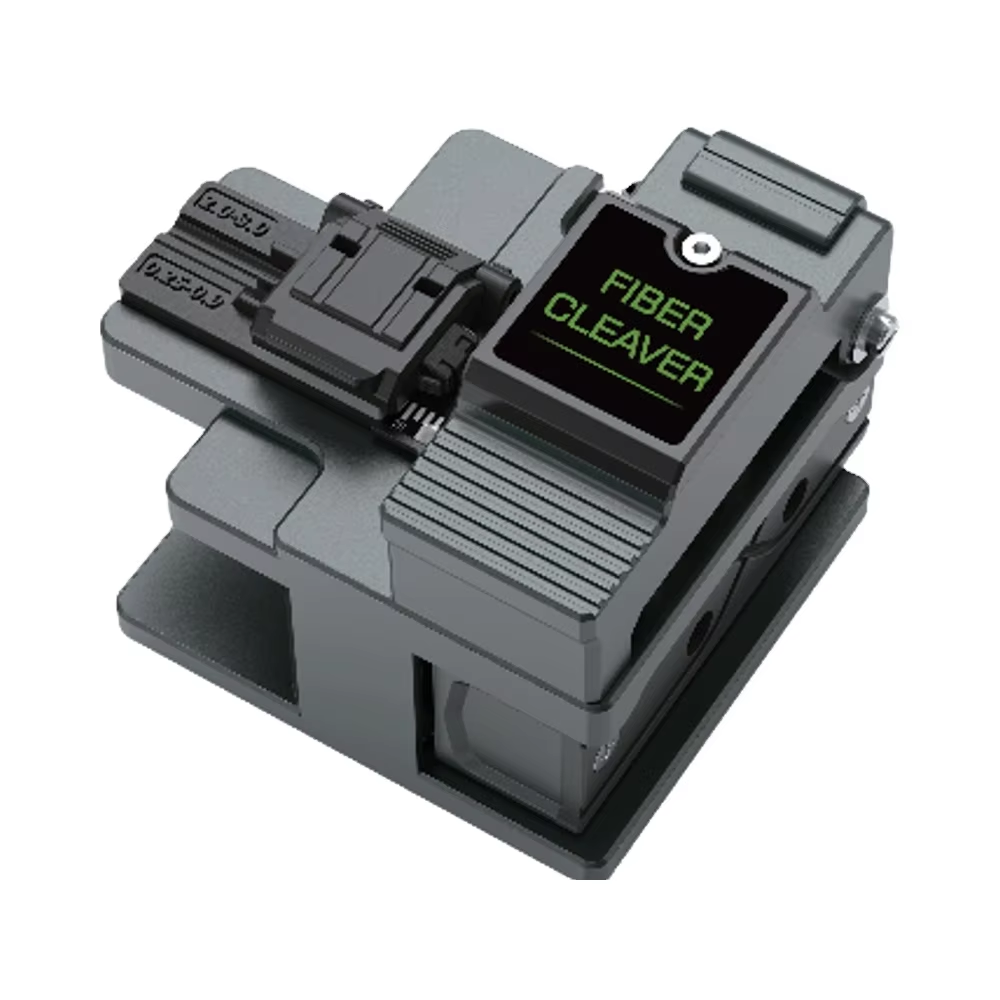

FC-20 Handheld optical fiber cleaver

Blade life up to 48,000 times
Typical cleaving angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Palm-sized design, lightweight and portable
All-in-one holder is suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Optical Fiber Cutter Handheld Optical Fiber Cleaver 0

Optical Fiber Cutter Handheld Optical Fiber Cleaver 1

Product configuration
Fiber cleaver FC-20	1
Carrying case	1
Quick guide	1

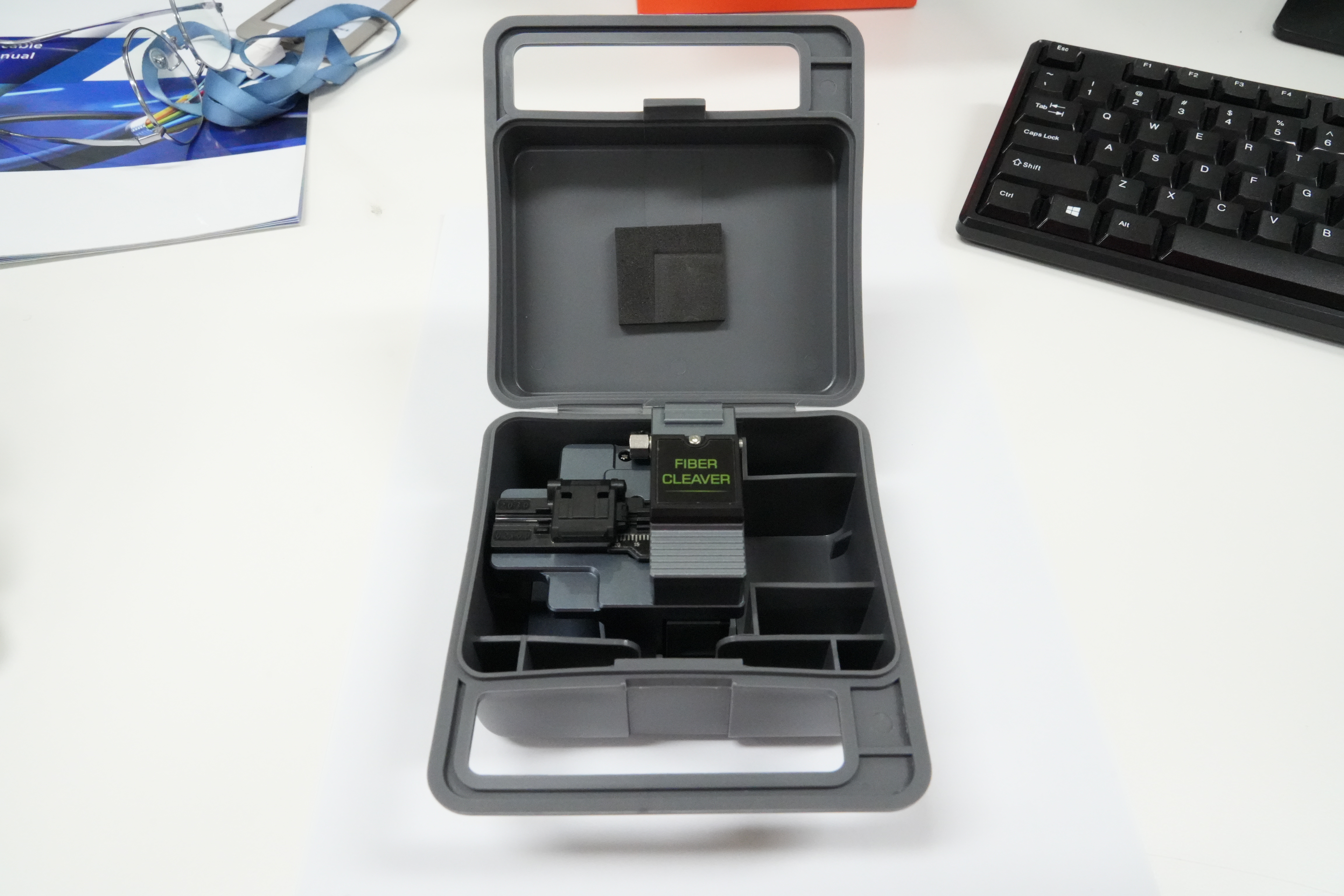

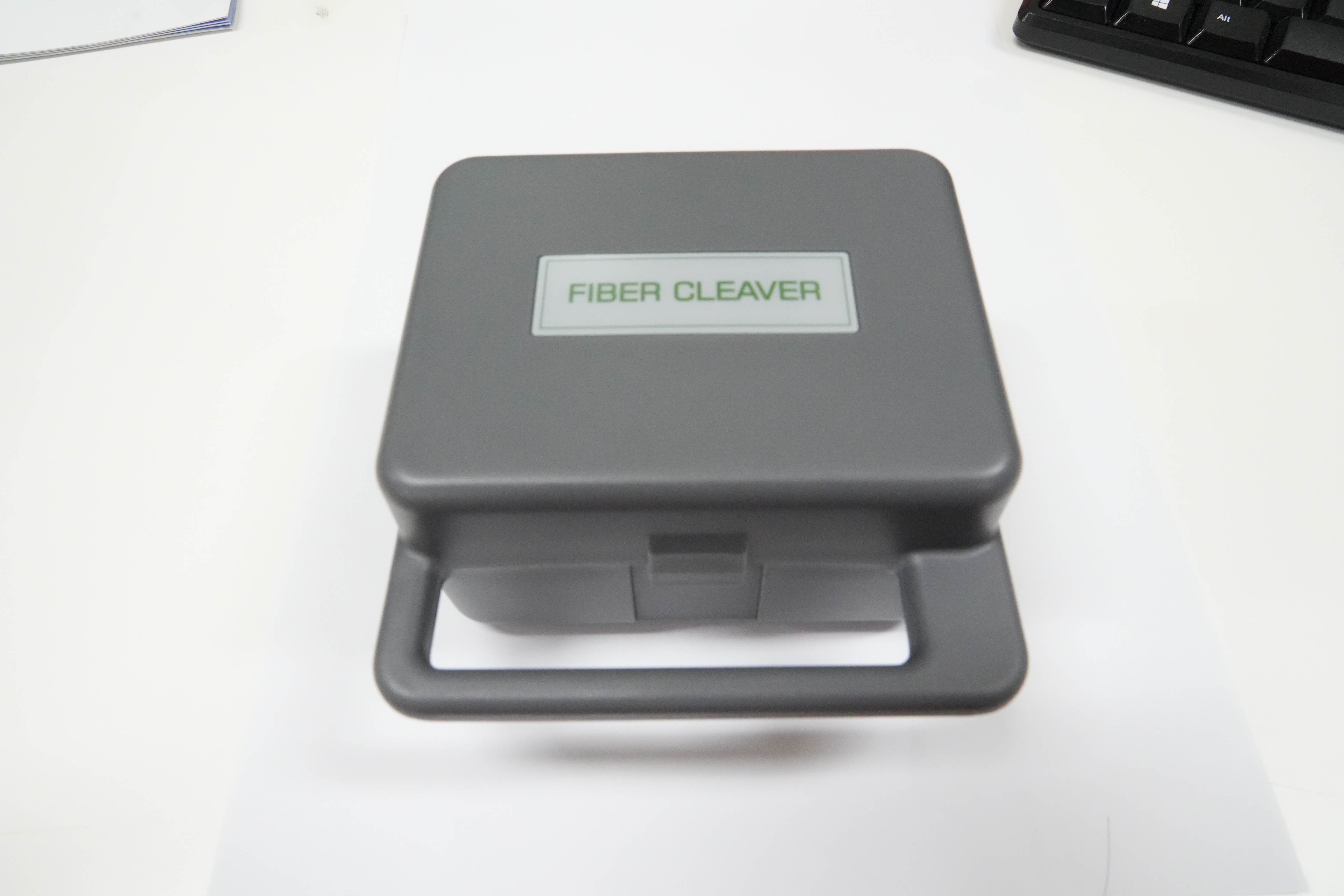

Professional carrying case

The slot design in the box prevent damage to the cutting blade body caused by shaking and collision,and can effectively protect the cutting blade

Specification

Brand Name	JQ/HAISO/OEM
Place of Origin	Guangzhou China
Use	ftth
Warranty Time	1year
Product name	Optical Fiber Cleaver
No. of Fiber	Single fiber
Ladding Diameter	125μm
Cleaved Length	Single fiber: 8~20mm
Applicable Fiber Cable	Single fiber: 0.25 ~ 3.0mm
Typical Cleaved Angle	Less than 0.5 Degrees
Typical Blade Life	Total 48,000 fiber cleaves (replaceable)
Auto Return	Pre-fitted
MOQ	1Pcs
Dimension	55W 55D50H(mm)
Weight	235g

Optical Fiber Cutter Handheld Optical Fiber Cleaver 4

Optical Fiber Cutter Handheld Optical Fiber Cleaver 5

Optical Fiber Cutter Handheld Optical Fiber Cleaver 6

We Support OEM and Customize products

Service: On-time deliveries,best price and high quality product.
We Support OEM and Customize products,Welcome to your inquiry!
Factory address: No 43 Lixin 9th Road Xintang Town Zengcheng District Guangzhou city China

Welcome to your inquiry!
Contact me at +86 18122384553
