GYTA Aluminium Armored Fiber Optic Cable 2 to 144 Core Loose Tube Outdoor Duct Direct Burial Installation
Контактное лицо : JQ CABLE
Номер телефона : +8618122383351
WhatsApp : +8618122383351
Количество мин заказа : | 1 км | Упаковывая детали : | Деревянный барабан |
---|---|---|---|
Время доставки : | 5-8 рабочих дней | Условия оплаты : | L/C, T/T, Western Union |
Поставка способности : | 30km в день |
Место происхождения: | Гуанчжоу, Китай | Фирменное наименование: | JQ/OEM/Customize |
---|---|---|---|
Сертификация: | ISO9001 ROHS CE-EMC FCC SDOC | Номер модели: | GCYFY/GCYFTY |
Подробная информация |
|||
Количество волокон: | 4-144cores | Тип волокна: | Одиночный режим/Multi Mode |
---|---|---|---|
Куртка: | PE/PVC/LSZH/HDPE/MDPE | Цвет: | Черный или оранжевый или подгонянный |
Название продукта: | Воздушно-дунутый микро- кабель | Номер модели: | GCYFY/GCYFTY |
Длина: | 2 км или индивидуальная длина | Установка: | Воздушный или воздуховоды |
Количество проводников: | ≥ 10 | На открытом воздухе: | Наружный волоконно -оптический кабель |
Центральный член силы: | ФРП или стальная проволока | Материал для блокировки воды: | Лента блокировки воды или наполнение соединения |
доспехи: | Оружие из гофрированной стальной ленты | Размер кабеля: | 8 мм ~ 16 мм |
Ядер: | По запросу покупателя | Кабельная конструкция: | Оружие из стальной ленты с несколькими свободными трубками |
RTS: | 45-80 кН | Рабочая температура: | -40 ° C до +70 ° C. |
OEM: | Приемлемый | Гарантия: | 25 лет |
Свободная трубка: | Пбт | Модель: | Кабели с бронированным оптическим волокном |
Материал куртки: | Финиш | Волоконно -модель: | SingleMode/Multimode |
Основной: | 12-144cores | Диаметр посыльного: | 5,0 мм |
Цвет пиджака: | Черный | Вне оболочки: | HDPE |
Время подъема: | Более 20 лет | Свободный материал трубки: | Пбт |
Структура: | центральная свободная трубка | Материал внутренней оболочки: | ПЭ/ПЭВП |
Образец: | Бесплатно | Ядро номер: | 6 ядра/8 ядра/12 ядра |
Участник силы: | Стальная проволока | Кабельный тип: | Свободная трубка |
Выделить: | 96 core microduct fiber cable,air blown outdoor fiber optic,loose tube high speed cable |
Характер продукции

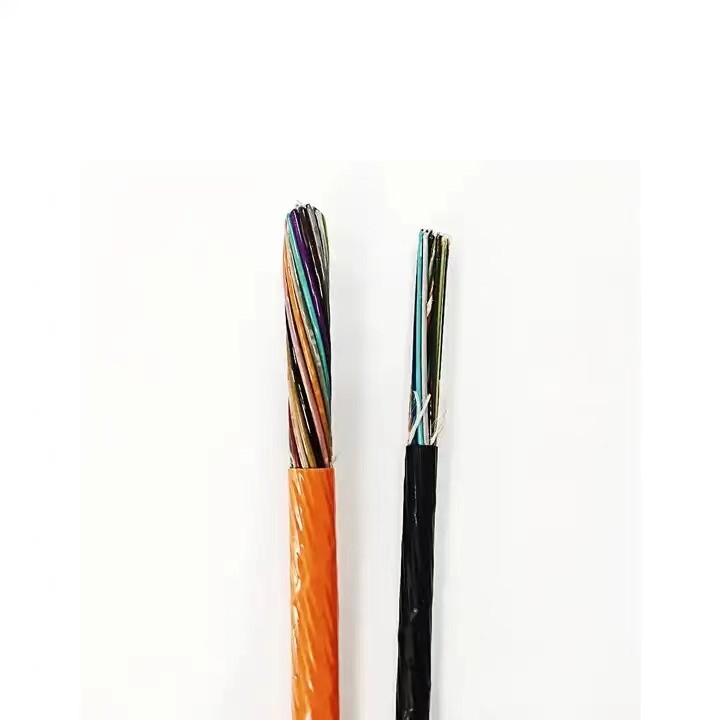

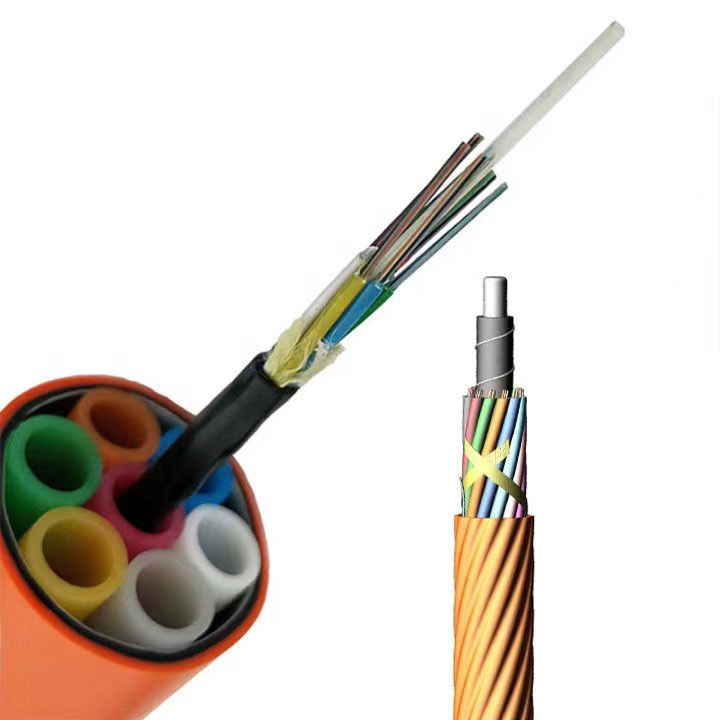

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable
Product Description
The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.
Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.
Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.
1. Model: GCYFY-96B1.3
2. Cable Cross-section
Optical Characteristics
Item | Specification |
Fiber type | G.652D |
Attenuation | |
@ 1310 nm | ≤0.36 dB/km |
@ 1383 nm | ≤0.35 dB/km |
@ 1550 nm | ≤0.22 dB/km |
@ 1625 nm | ≤ 0.30 dB/km |
Cable Cut-off Wavelength(λcc) | ≤1260 nm |
Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
Chromatic Dispersion | |
@ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
@ 1550 nm | ≤18 ps/(nm. km) |
@ 1625 nm | ≤22 ps/(nm. km) |
PMDQ | ≤0.2 ps/km1/2 |
Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
Core Concentricity Error | ≤0.6 um |
Cladding Diameter | 125.0±0.7 um |
Cladding Non-circularity | ≤1.0% |
Coating Diameter | 245±10 um |
Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.
Cable Parameters
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Environmental Characteristics
Working temperature | -35oC ~ +70oC |
Storage and transportation temperature | -35oC~ +70oC |
Installation temperature | -15oC~ +60oC |
Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.
Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.
FAQ
Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.
Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.
Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.
Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.
Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.
Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.
Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
