Главная страница ПродукцияКабель падения оптического волокна FTTHWhite Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable

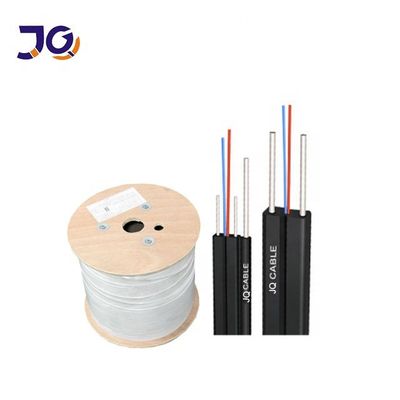

White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable
White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable
Контакт

White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable

Количество мин заказа : 1км Упаковывая детали : Деревянный барабанчик
Время доставки : 3-5 дней, оно зависит от количества заказа Условия оплаты : L/C, T/T, западное соединение, Alipay
Поставка способности : 4500 в месяц
Место происхождения: КИТАЙ Фирменное наименование: JQ/OEM
Сертификация: ISO 9001,ROHS CE-EMC FCC SDOC Номер модели: GJXH

Подробная информация
Место происхождения: Гуанчжоу, Китай Изготовитель: да
Тип: GJXH/GJXCH Тип волокна: G657A1/A2/G652D/G657A1/G657A2
Куртка: ПВК ЛСЗХ длина: 1км или 2км
OEM: Доступный Центральный член прочности: Член прочности FRP, член прочности стального провода
Вес: 10-20kg/km Цвет: Белизна/чернота
Выделить:

G657A1 FTTH Fiber Optic Drop Cable

,

White Jacket FTTH Fiber Optic Drop Cable

,

G657A1 4 core drop cable

Характер продукции

White Jacket 1/2/4 Core Fiber Drop Cable G657A1 FTTH Outdoor&Indoor Drop Cable



The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the
FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance
White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 0
White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 1

White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 2
White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 3
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.

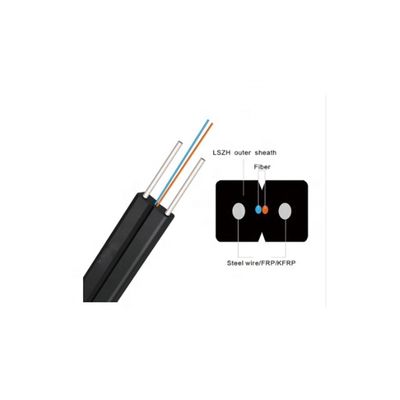

The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.


Technical parameters



Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30


Feature



1.Two parallel steel wire strength members ensure good performance of crush resistance to protect the fiber.


2.Novel flute design, easily strip and splice, simplify the installation and maintenance.

3.Low smoke zero halogen and flame retardant sheath.

4.Single mode (2.0±0.2)x(3.0±0.2)mm.

5.Compliant with Telcordia GR-326-CORE specification.
White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 4

Application

Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply


Package



Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box



White Jacket 4 Core G657A1 FTTH Fiber Optic Drop Cable 5



FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
