Опыт лучшего в сетевом подключении с FTTH волоконно-оптического кабеля для внутренних и наружных
Контактное лицо : JQ CABLE
Номер телефона : +8618122383351
WhatsApp : +8618122383351
| Количество мин заказа : | 1км | Упаковывая детали : | деревянная коробка пакета или мультфильма |
|---|---|---|---|
| Время доставки : | 5-8 дней работы | Условия оплаты : | L/C, T/T, западное соединение |
| Поставка способности : | 100км в день |
| Место происхождения: | Гуанчжоу, Китай | Фирменное наименование: | JQ/OEM |
|---|---|---|---|
| Сертификация: | ISO9001 | Номер модели: | ГДЖИСКХ |
|
Подробная информация |
|||
| Отсчет волокна: | 1/2/4 ядров | Цвет куртки: | чернота, белая |
|---|---|---|---|
| Материал куртки: | ЛСЗХ/ПВК | Амортизация (максимальная): | ≤0.36dB /KM (1310nm) |
| Член прочности: | Стальной посыльный Wire/FRP | Волокно: | YOFC, или как запрос |
| Вес: | 20kgs/km | длина: | 1км или 2км |
| Тип волокна: | G657A1/A2/G652D | Применение: | FTTH, сеть |
| Выделить: | Кабель падения оптического волокна G657A1/A2 FTTH,провод для ввода оптического волокна G657A1/A2,само- поддерживая кабель падения оптического волокна FTTH |
||
Характер продукции
FTTH Drop cable Self-supporting G652D G657A1 G657A2 Drop Fibra Optica Cable
Product Description

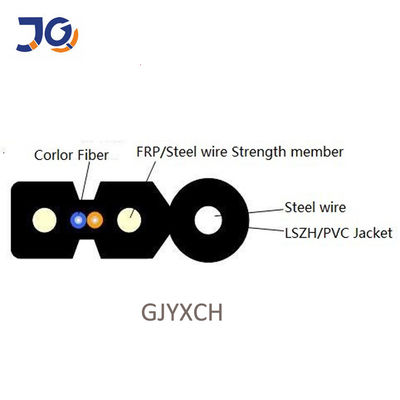

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.
Features
G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable
Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
Product detail
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
|
|
G.657A1 |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
|
1550nm |
μm |
10.1±0.5 |
||
|
2 |
Cladding Diameter |
um |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
um |
≤0.5 |
|
|
5 |
Coating Diameter |
um |
245±5 |
|
|
|
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
入cc≤1260 |
|
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
|
1550nm |
dB/km |
≤0.21 |
||
|
10 |
Macro-Bending Loss |
1turnx10mm radius@1550nm |
dB |
≤0.75 |
|
1turnx10mm radius@1625nm |
dB |
≤1.5 |
||
Technical parameters
| Product Model |
Fiber Count (core) |
Cable Diameter(mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance |
Bending Radius Static/Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply
Package
Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.

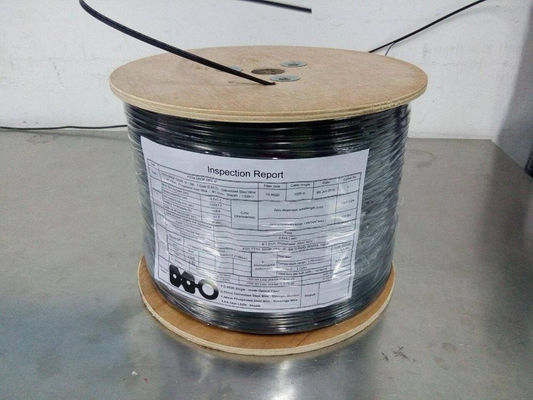

Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
FAQ
